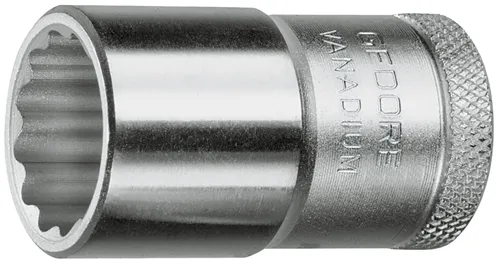

D19 1/2" 13mm BiHex Socket
- Acc. to DIN 3124, ISO 2725-1
- Square drive as per DIN 3120 - C 12,5, ISO 1174, with ball retention groove
- Manually operated, with non-slip cross knurling
- Chrome vanadium steel 31CrV3, ground, chrome-plated
- * not standardised
Specifications
- Drive mount, square [metric]: 12,5mm
- Drive connector square [inch]: 1/2"
- Standard: DIN 3120 – C 12,5 ISO 1174 DIN 3124
- Insert-Ø 1: 19,2mm
- Insert-Ø 2: 22,5mm
- Working length: 38,0mm
- Operating depth: 12,5mm
- Material: Chrome-vanadium steel 31CrV3
- Surface: polished, chrome-plated
- Width across flats 1 [mm]: 13
